Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr20Ni80
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Nickel, Chromium |
Nickel(Min): |
77% |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
Resistance Wire |
Material: |
Nickel, Chromium |
Nickel(Min): |
77% |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
Resistance Wire |

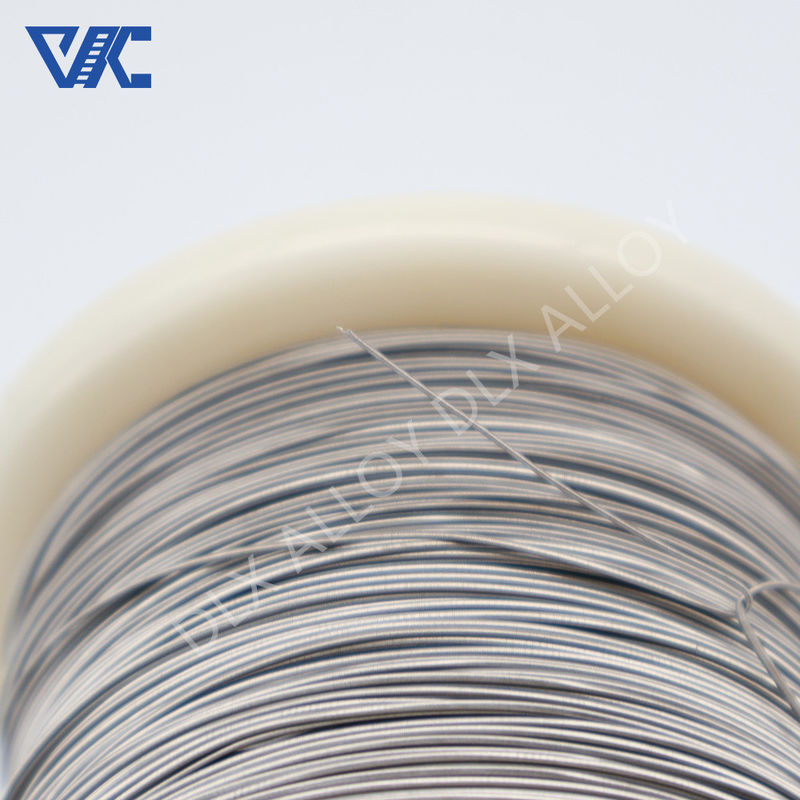

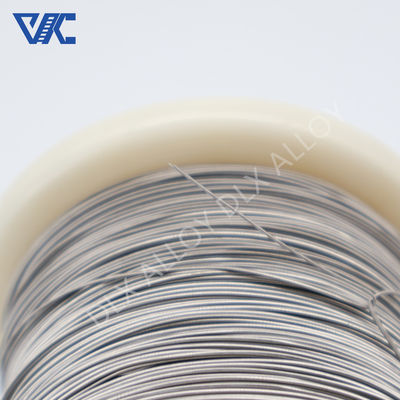

Nichrome Cr20Ni80 Cr10Ni90 Cr15Ni60 Cr30Ni70 Cr20Ni30 Electric Heating Resistance Wire Coil For Vapes
NiCr Series
Nichrome wire is a highly versatile material that is widely used in various industries due to its unique properties. It is composed of nickel, chromium, and iron, which give it its non-magnetic alloy characteristic. One of the key properties of nichrome wire is its high resistivity, which means that it can resist the flow of electrical current. This makes it an excellent choice for use in electrical devices that require thermal action, such as heat guns and industrial hair dryers.
In addition to its high resistivity, nichrome wire also has excellent ductility after use and weldability. This means that it can be easily shaped and formed into various shapes and sizes, and can be easily welded together to form larger structures. As a result, it is commonly used to manufacture heating elements for laboratory and industrial electric furnaces, water heating systems, high-value electrical resistors, heating cords, and cables.
Moreover, nichrome wire has good oxidation resistance, which allows it to withstand high temperatures and prevents it from corroding over time. This makes it an ideal choice for use in applications that require high-temperature resistance.
Overall, nichrome wire is a versatile and reliable material that is essential in many industries. Its unique combination of properties makes it an ideal choice for applications that require high-temperature resistance, electrical resistance, and ductility. Nichrome wire has proven to be a highly useful material in various industrial applications, and its importance in the manufacturing industry cannot be overstated.
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
NiCr 80/20 is suitable for heating elements used for temperatures upto 1200°C. This is used for electrical cooking equipment, precison resistors. Oxidized wires of these alloys display better insulation properties.
NiCr 70/30 is suitable for heating elements used for temperatures upto 1230°C for industrial furnaces which have alternating oxidizing, or reducing atmosphere. This alloy has excellent corrosion resistance and long life in air and controlled atmospheres.
NiCr 60/15 is suitable for heating elements used for temperatures upto 1150°C. This is used for electrically heated equipment, high resistance and potientiometer resistors.
NiCr 30/20 is suitable for heating elements used for temperatures upto 1050°C. Inspite of relatively high Fe content, these alloys are resistant to oxidation and chemical corrosion. They are used for making heating elements of cooking equipment, heating cords and cables.
|
|
