Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO
Model Number: 0Cr21Al6Nb
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 3kgs
Price: 3-500kgs $3.75-$5.20
Packaging Details: Put wire into cartons, then put cartons onto pallet
Delivery Time: 10-25 days
Payment Terms: L/C, T/T, Paypal, Western Union
Supply Ability: 50 Tons Per Month
Material: |
FeCrAl |
Surface: |
Bright, Acid White, Black/Oxidized |
Density: |
7.1 G/cm3 |
Resistivity: |
1.45 Ω/m |
Max Working Temperature: |
1350℃ |
Elongation At Rupture: |
＞12% |
Hardness (H.B.)): |
200-260 |
Magnetic Properties: |
Magnetic |
MOQ: |
3-20kgs |
Delivery Lead Time: |
15-25 Days |
Melting Point Approx (℃): |
1510℃ |
Tensile Strength (N/mm2)): |
650-800 N/mm2 |
Material: |
FeCrAl |
Surface: |
Bright, Acid White, Black/Oxidized |
Density: |
7.1 G/cm3 |
Resistivity: |
1.45 Ω/m |
Max Working Temperature: |
1350℃ |
Elongation At Rupture: |
＞12% |
Hardness (H.B.)): |
200-260 |
Magnetic Properties: |
Magnetic |
MOQ: |
3-20kgs |
Delivery Lead Time: |
15-25 Days |
Melting Point Approx (℃): |
1510℃ |
Tensile Strength (N/mm2)): |
650-800 N/mm2 |

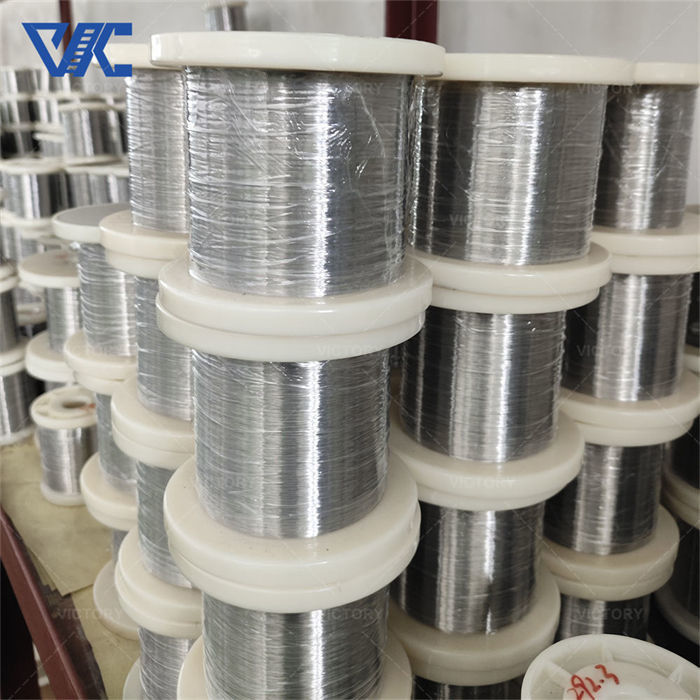

High Temperature Iron Chrome OhmAlloy145 FeCrAl Alloy 0Cr21Al6Nb A1 Heating Resistance Wire
General Introduction:
0Cr21Al6Nb is a type of high-temperature resistant alloy. It is a specific composition of metals that is commonly used in heating elements, industrial furnaces, and other high-temperature applications. This alloy typically contains chromium (Cr), aluminum (Al), niobium (Nb), and possibly other elements in specific proportions to achieve the desired properties for its intended use.
Main Features:
1. High Temperature Resistance: 0Cr21Al6Nb exhibits excellent resistance to high temperatures, making it suitable for use in applications where exposure to elevated temperatures is common.
2. High Electrical Resistance: This alloy has high electrical resistance, which is beneficial for applications requiring electrical heating elements.
3. Good Oxidation Resistance: 0Cr21Al6Nb shows good resistance to oxidation, helping to maintain its properties and performance in high-temperature oxidizing environments.
4. Mechanical Stability at High Temperatures: The addition of niobium provides improved high-temperature strength and stability, reducing the risk of deformation or mechanical failure under heat stress.
5. Creep Resistance: 0Cr21Al6Nb has good creep resistance, allowing it to withstand prolonged exposure to high temperatures and mechanical stress without significant deformation.
Why 0Cr21Al6nb need to add Niobium? What is main advantage?
1. Improved High-Temperature Strength: Niobium helps enhance the high-temperature strength of the alloy, making it more resistant to deformation and mechanical failure at elevated temperatures.
2. Stability at High Temperatures: The addition of niobium contributes to the stability of the alloy's microstructure at high temperatures, ensuring consistent performance over extended periods of use.
3. Creep Resistance: Niobium aids in improving the creep resistance of the alloy, which is crucial for applications where the material is subjected to prolonged exposure to high temperatures and mechanical stress.
4. Oxidation Resistance: Niobium can also enhance the oxidation resistance of the alloy, helping to protect it from degradation when exposed to high-temperature oxidizing environments.
Overall, the addition of niobium to 0Cr21Al6nb results in an alloy with superior mechanical properties and performance characteristics at high temperatures, making it well-suited for demanding applications in industries such as heating elements, industrial furnaces, and aerospace.
| Shape | Size (mm) |
| Wire | 0.025-8.00mm |
| Rod | 8.00-50.00mm |
| Robbin | (0.05-0.35)*(0.5-6.0)mm |
| Strip | (0.50-2.50)*(5.00-180.00)mm |
| Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 |
0Cr21Al4/ 0Cr19Al3 |
0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main chemical composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Rest | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Others | -- | -- | -- | -- | -- | Nb 0.5 | Mo 1.8-2.2 | |
| Max. continuous service temp. of element( °C ) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity at 20ºC(μΩ@m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Thermal conductivity(KJ/m@h@ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | ||
| Line expansion coefficient(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile Strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at break(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness (H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| continuous service time(Hours/ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
