Product Details
Place of Origin: China
Brand Name: Victory
Certification: ROHS,ISO 9001
Model Number: New constantan 6J11
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: 15~25$/kg
Packaging Details: Wooden box/pallet, spool wire with carton box, coil with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |

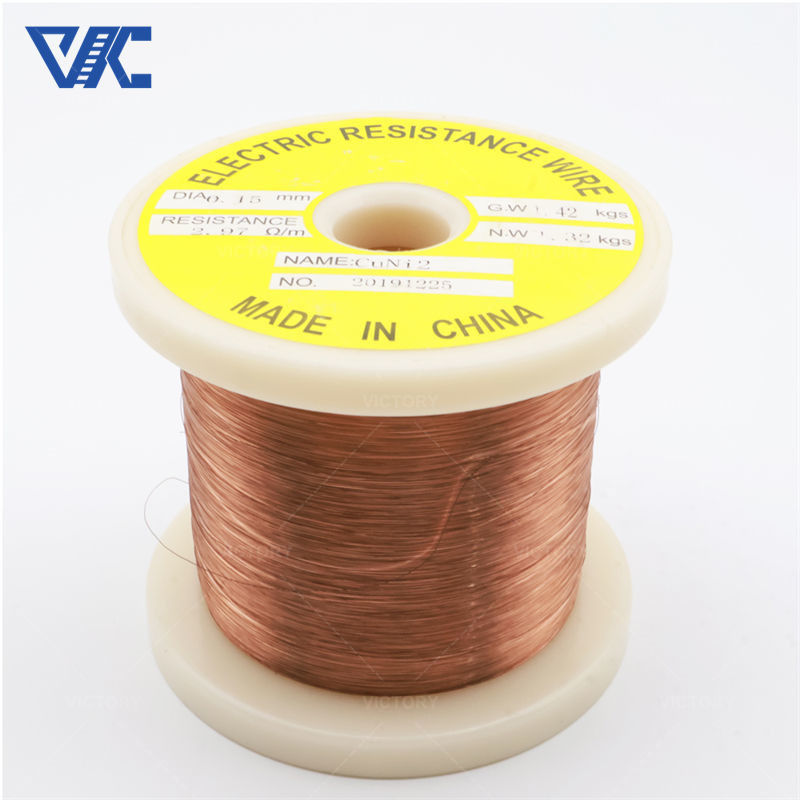

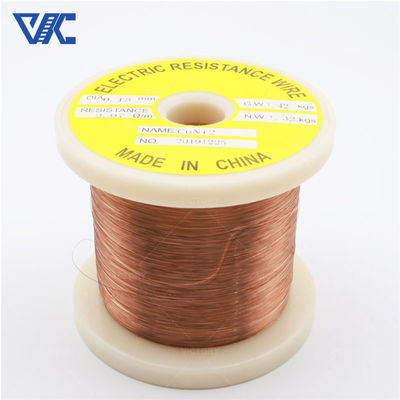

New Constantan 6J11 Copper Nickel Alloy Resistance Wire Flat Strip Ribbon Wire |
Material: |
Cu/Ni/Mn |
Nickel: |
10.5~12.5% |
Resistivity: |
0.49+/-0.03 |
Tensile Strength: |
420 MPA |
Density: |
8.0 G/cm3 |
Condition: |
Hard / Soft |
Sureface: |
Bright |
Delivery Time: |
7-20 Days |
Magnetic Properties: |
Non-Magnetic |
Thermal Conductivity At 20°C: |
2W/mK |
Diameter: |
0.1~10mm |
Product Name: |
New Constantan 6J11 Copper Nickel Alloy Resistance Wire Flat Strip Ribbon Wire |
Material: |
Cu/Ni/Mn |
Nickel: |
10.5~12.5% |
Resistivity: |
0.49+/-0.03 |
Tensile Strength: |
420 MPA |
Density: |
8.0 G/cm3 |
Condition: |
Hard / Soft |
Sureface: |
Bright |
Delivery Time: |
7-20 Days |
Magnetic Properties: |
Non-Magnetic |
Thermal Conductivity At 20°C: |
2W/mK |
Diameter: |
0.1~10mm |
Introduction:
Constantan 6J11 is a specific type of constantan alloy wire. This alloy is typically used in the production of resistors, strain gauges, and other applications where a stable, low-temperature coefficient of resistance is required. Constantan 6J11 is known for its consistent electrical properties over a wide temperature range, making it suitable for precision measurement and control systems
Application:
Resistors: Constantan 6J11 wire is used in the manufacturing of precision resistors due to its low temperature coefficient of resistance and stable electrical properties over a wide temperature range.
Strain Gauges: It is utilized in the production of strain gauges for measuring mechanical strain in various materials and structures.
Temperature Sensors: Constantan 6J11 wire can be employed in the construction of temperature sensors and thermocouples due to its consistent electrical behavior over a range of temperatures.
Precision Instrumentation: It is used in precision measurement and control systems where stable electrical properties are essential for accurate readings and control.
Heating Elements: In some cases, Constantan 6J11 wire can be used in heating elements and other applications where its resistance properties are advantageous.
Advantage:
Resistance to Corrosion: Constantan 6J11 wire is resistant to corrosion, which enhances its durability and reliability in various environmental conditions.
High Tensile Strength: The wire has high tensile strength, making it suitable for applications where mechanical durability is important.
Compatibility with Welding: Constantan 6J11 wire is often compatible with welding processes, allowing for ease of integration into various manufacturing processes.
These advantages make Constantan 6J11 wire a preferred choice for applications such as precision resistors, strain gauges, temperature sensors, and other precision instrumentation where stable electrical properties are crucial.
Main Chemical composition (%)
| New Constantan | Copper | Al | Mn | Fe |
| Chemical | Rest | 2.5~4.5 | 10.5~12.5 | 1.0~1.6 |
Physical Parameters:
| Type | Resistivity (μΩ.m20°C) |
Max working temperature |
Tensile strength (Mpa) |
Melting point (°C) |
Density (g/cm) |
EMF vs Cu uV/°C (0~100°C) |
Elongation (%) |
| 6J11 | 0.49+/-0.03 | 400 | 420 | 1280 | 8.9 | 2 | >15% |
| Type | Size(mm) | others | |
| Round wire | 0.1~8mm | Customized | |
| Flat ribbon wire | W-0.5~5mm | T-0.1~3mm | |
| Strip/foil | W-6~250mm | T-0.1~3mm | |
| Rod | 8~200mm | ||
